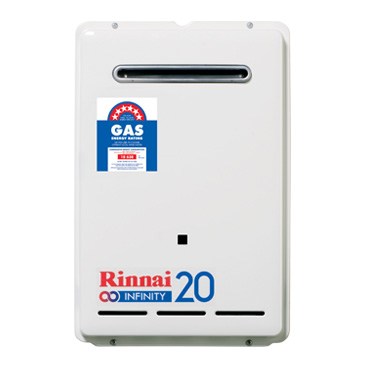

Rinnai Infinity 20      6.1

 20

At 20 litres a minute this heater is ideal for 1-2 bathroom homes



6.1 Star equivalent rating

  • Low running costs as with all continuous flow gas heaters
  • Available preset at 50C so no requirement for a tempering valve
  • Low greenhouse gas emissions
  • Full electronic control
  • Compatible with all controllers
  • Precise temperature control for safety and convenience
  • Compact design allows installation flexibility
  • Compatible with low flow rated shower fixtures (3 Star – 7.0 to 9.0 l/min)

3 Year parts and labour and 12 year warranty on heat exchanger



Specifications

Dimensions (mm) : Height 530
Dimensions (mm) : Width 350
Dimensions (mm) : Depth 194
Colours White
Factory Default Temperature (Celsius) 50 or 60
Water Pressure (kPa) : Minimum 160
Water Pressure (kPa) : Maximum 1000
Gas Rate Min/Max (Mj/h) : NG 13.8/160
Flow Rate 25 Degrees C/Max : l/min 20/24
Star Rating 6.1
Connection Sizes Gas/Hot/Cold (mm) 20/20/20
Status Monitor Yes
Dimensions (mm) : Height Inc Brackets 571
Dimensions (mm) : Hot Water Outlet (From Wall) 87
Dimensions (mm) : Hot Water Outlet (Left from Centre) 105
Dimensions (mm) : Cold Water Inlet (From Wall) 68
Dimensions (mm) : Cold Water Inlet (Right from Centre) 10
Dimensions (mm) : Gas Connection (From Wall) 77
Dimensions (mm) : Gas Connection (Right from Centre) 83
Dimensions (mm) : Gas Connection Length (From Base) 40
Dimensions (mm) : Cold Connection Length (From Base) 50
Weight (kg) 15
